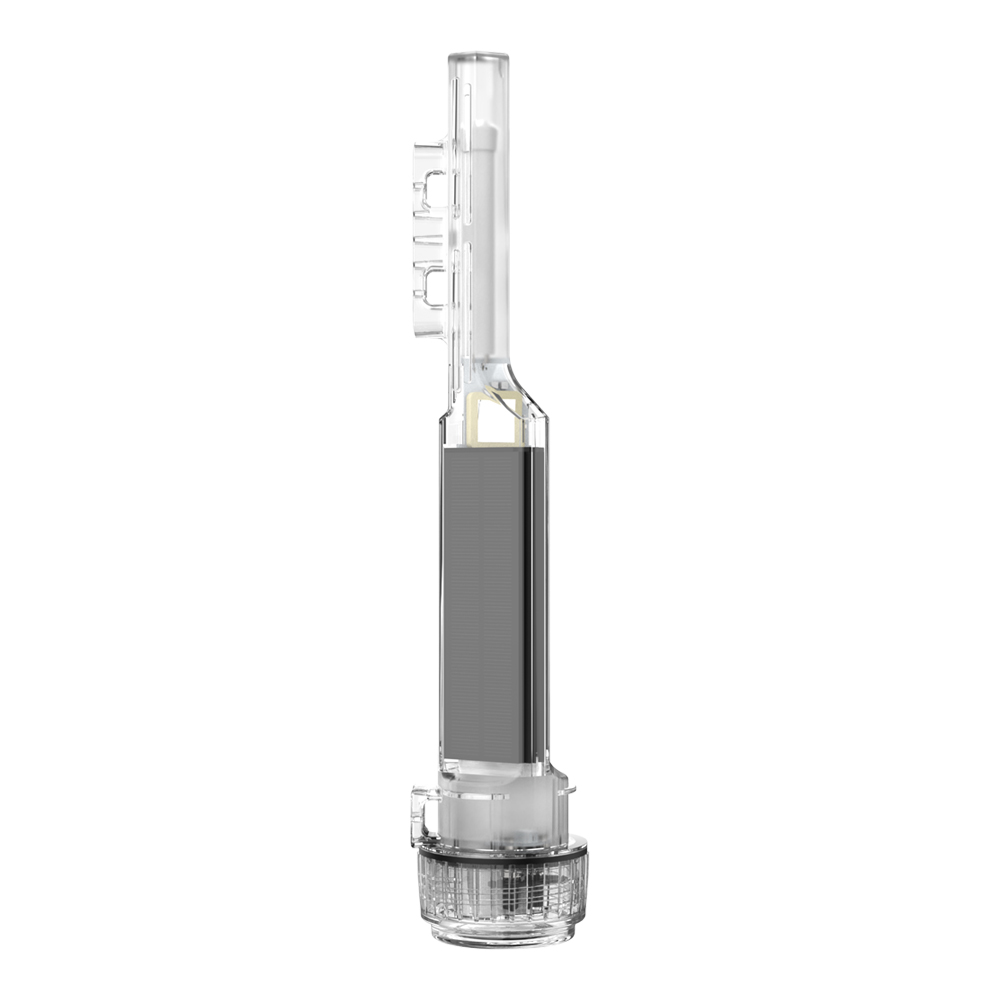

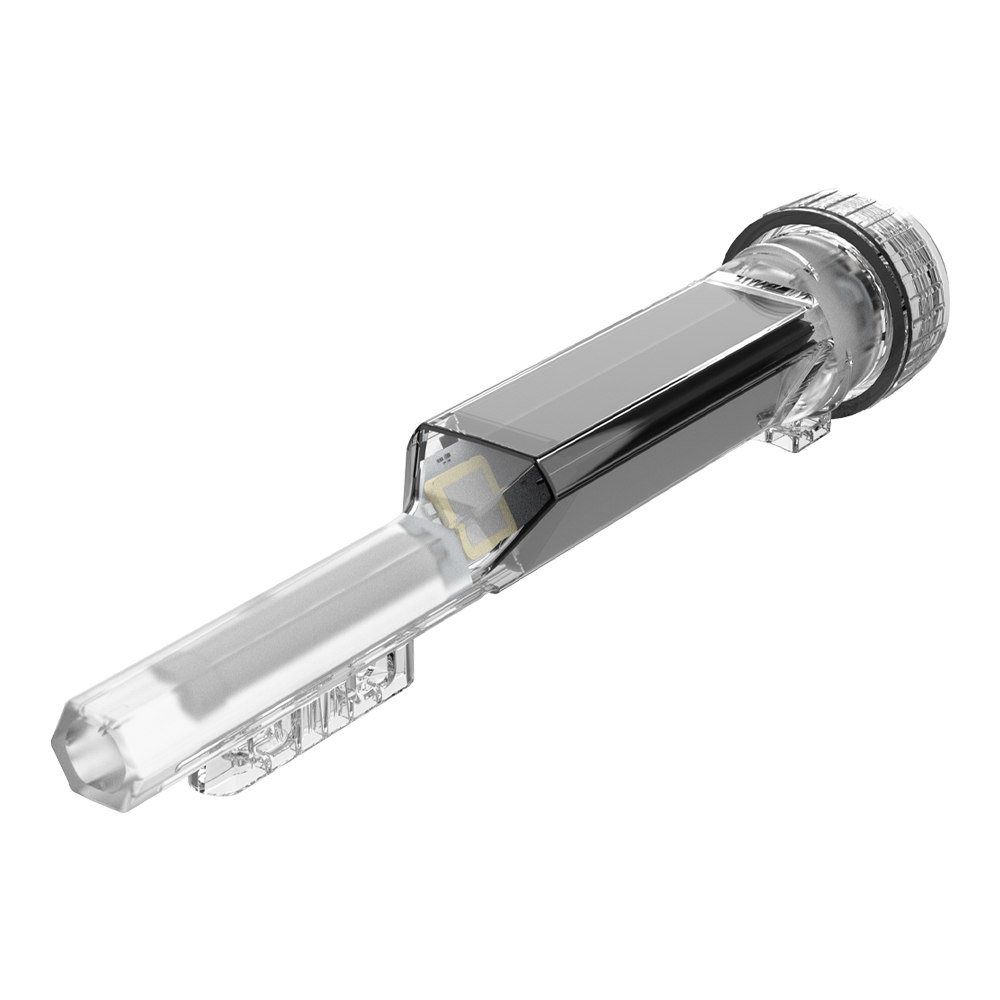

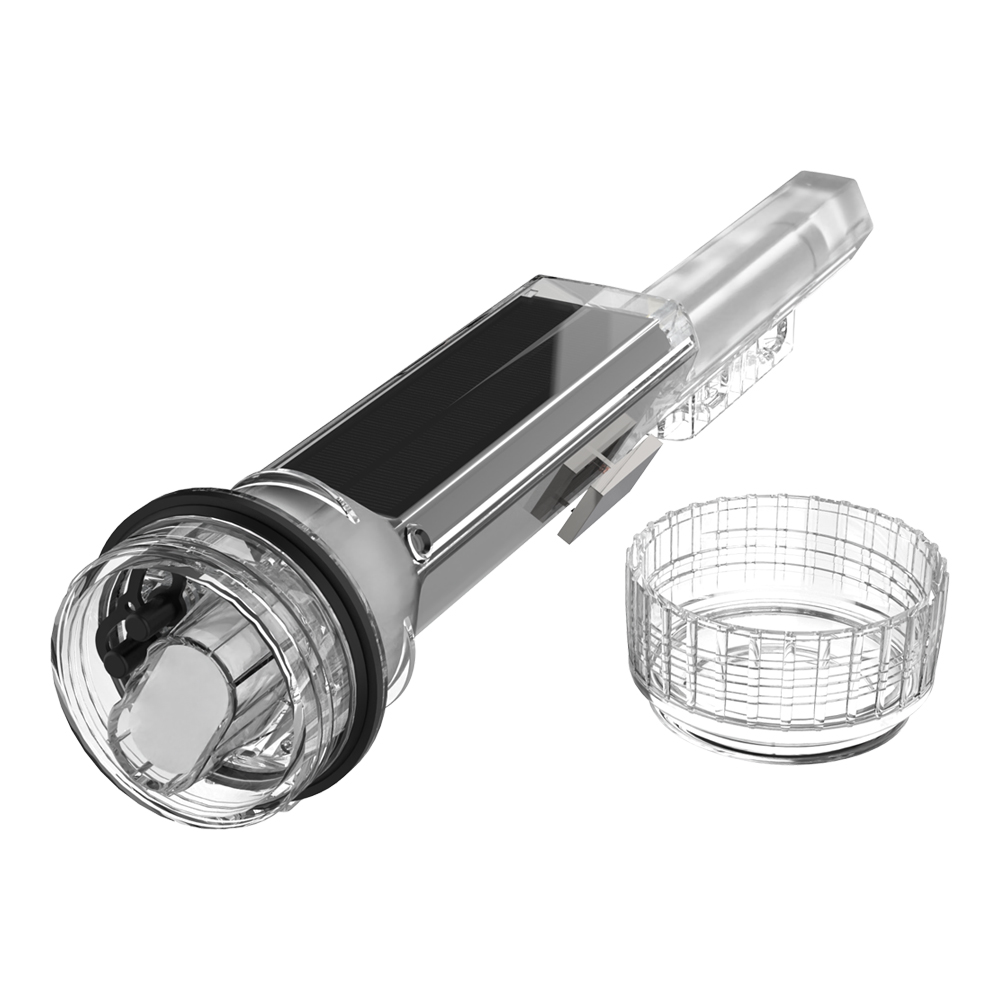

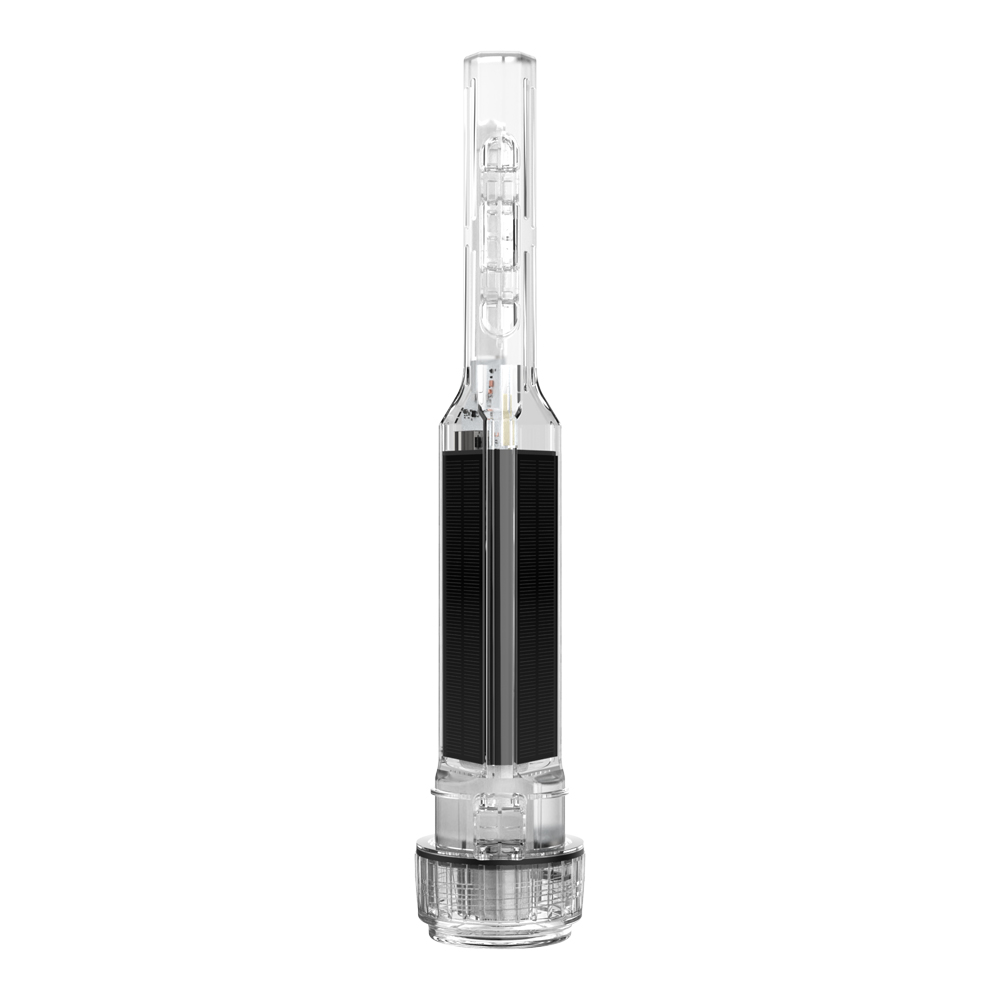

W220 Solar AIS Buoy

AIS Fishing Buoy is usually fixed on th fishing net, with GPS positioning function. AIS receiver on the ship can receive the position information sent by AIS Fishing Buoy, which can help the ship identify the exact position of fishing net, shorten the search time , reduce the production cost, and prevent the net drifting loss, towing, hanging.

Internal antenna
Distance：8nm
Time：Built-in solar panels，unlimited endurance
Encryption function（Optional）

SKU:
Availability:



Inquire

Description
Specifications
What's in the box
Download

W220-1 网位仪列表英文 W220-3 W220-4 W150-5

Quick links

Home
Products
News
Supports
About Us
Contact Us

Products

Autopilots
AIS Buoy
Radiotelephone

Product Brochure

Products

Compass
AIS

Contact

Address: West Area,Xiaoliu Industrial Park , No.21 Liuzhou North Road,Pukou District,Nanjing,China
Phones: +86 025 83358002
Email: bzhang@sandemarine.com

lily@sandemarine.com

TX frequency	161.975MHz & 162.025MHz
Band width	25KHz
Stability	±1ppm
Voltage	6.2～8.2VDC
Current consumption	≤0.3mA (Stanby) , ≤25mA (GPS searching) , ≤2A (Tx)
GPS start time	≤60s (Cold start), ≤5s (Hot start)
GPS positioning accuracy	≤10m

Temperature	-25℃~60℃
Waterproof	IP68

TX Power	10W
Adjust Mode	GMSK BT=0.4
Adjust Index	0.5
Launch Stray	<-36dBm

Antenna	Internal antenna
Distance	≥8nm (10W)
Tx interval time	30s / 1min / 2min / 3min / 5min (Programmable)
Battery	Standard (2600mAh)
Working time (Tx interval time:2min)	Unlimited endurance(Sunffcient sunlight)
Encrypted version	Using with AIS buoy receiver WR100

TX frequency	161.975MHz & 162.025MHz
Band width	25KHz
Stability	±1ppm
Voltage	6.2～8.2VDC
Current consumption	≤0.3mA (Stanby) , ≤25mA (GPS searching) , ≤2A (Tx)
GPS start time	≤60s (Cold start), ≤5s (Hot start)
GPS positioning accuracy	≤10m
