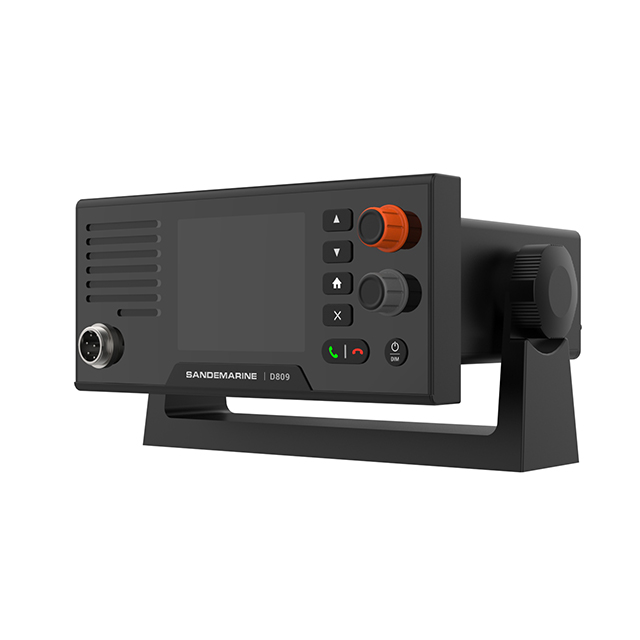

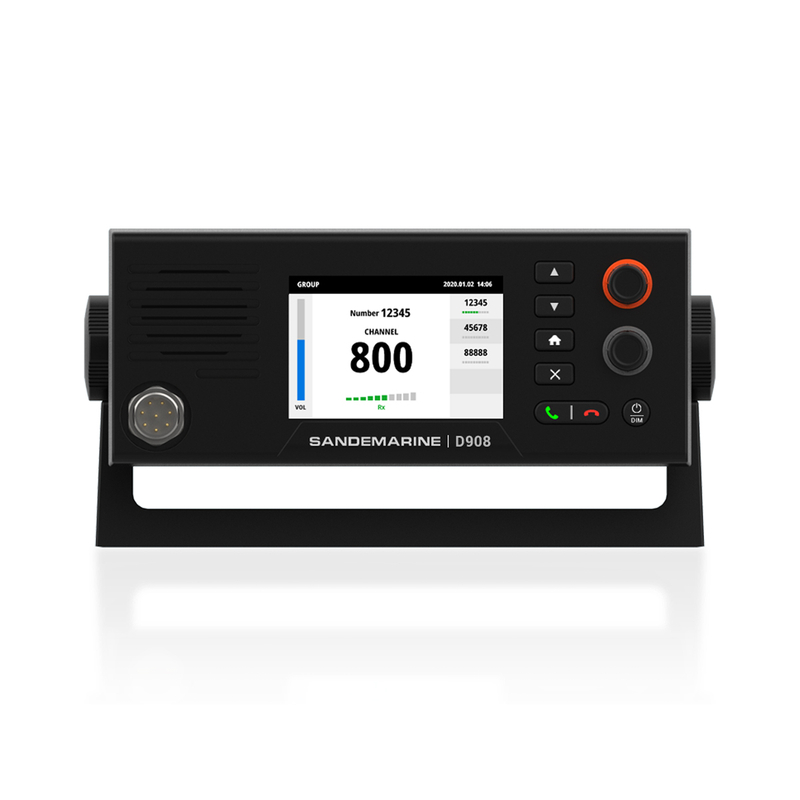

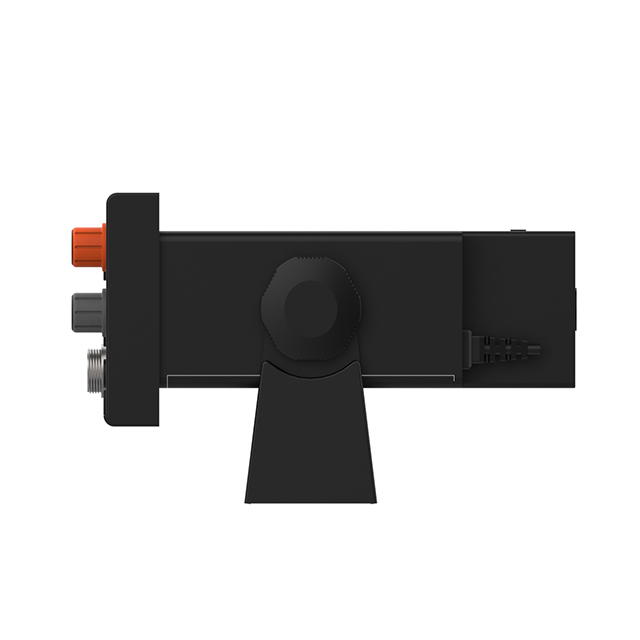

UHF telephone (dual mode) D908

SKU:
Availability:
Inquire

D908--图层 1

D908--图层 2D908--图层 3D908--图层 4

Fishing Phone

Screen 3.5 inch
Displayable area  73.4x49.0mm
Brightness 230 ints (Max)

Pixel

 320X480

Environment

Temperature -15℃~55℃
Waterproof IP66

Power

Power supply 13.8V DC
Current Tx:<12A@13.8V(SWR≤1.5) Quiescent:0.37A@13.8V

Installation

Installation Desktop installation, Hanging installation, Embedded installation

Digital

Frequency 424-444MHz
Channel interval 25KHz
Rx sensitivity ≤-119dBm@PER≤20%
Co channel interference ≤10dBc@PER≤20%
Adjacent channel rejection ratio ≥65dBc
Image rejection ratio ≥65dBc
Transmit power 45W/55W/65W

Analog

Frequency 424~424,444~480MHz
Channel interval 25KHz/12.5kHz
Rx sensitivity ≤-119dBm(SINAD=12db)
Adjacent channel rejection ratio ≥65dBc
Transmit power 45W/55W/65W

Functions

Main functions Group chat, Phone Number Calling, Analog intercom, My channel(Analog), Contacts, Call logs
Other functions Standing wave ratio detection, Temperature detection, Preceding power detection, Reverse power detection, High temperature protection,High power protection

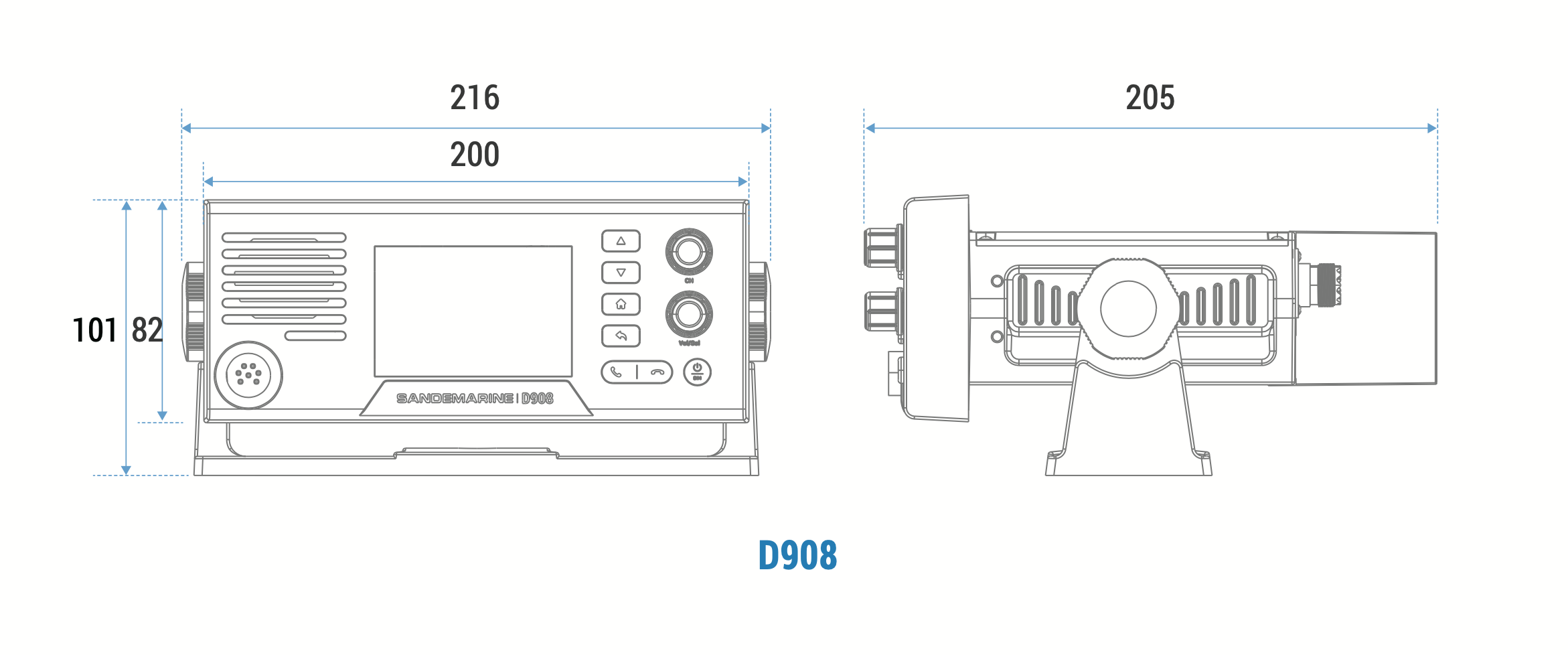

Size

对讲机D908尺寸图



What‘s in the box


01   UHF telephone (dual mode) D908×1

02    Accessories
