SAT200 ClassB AIS Transponder
SAT200 ClassB AIS Transponder SAT200 ClassB AIS Transponder
SAT200 ClassB AIS Transponder SAT200 ClassB AIS Transponder
SAT200 ClassB AIS Transponder SAT200 ClassB AIS Transponder
SAT200 ClassB AIS Transponder SAT200 ClassB AIS Transponder

loading

SAT400/SAT400pro/SAT400GPS/SAT500pro/SAT500Pro Wifi/SAT 600Pro Wifi/SAR300Pro ClassB AIS Transponder

SKU:
Availability:
Inquire

SAR300

Parameters

Frequency 156.025MHz~162.025MHz
Channel Spacing 25KHz
Modulation GMSK
Bit Rate 9600 bps

Number of AIS trasmitter

 1
Output power 5W (CSTDMA)
Number of AIS Receiver 2 (Contains A and B channels)
AIS Channel A (default)
 CH878(161.975)
AIS Channel B (default) CH88B(162.025)
Rx sensitivity -118dBm@PER≤20%
Power supply 9-36V DC

Environment


Temperature -25℃~+55℃
Waterproof IP54

Interface

Indicator Power, Error, Tx, Rx
NMEA0183

38400 baud(default), programmable

Output×2, Input×1
RS232

38400 baud(default), programmable

USB connectivity for PC/MAC

Gps

Channels 72

Standards

Standards IEC 62287-1; IEC 61108-1; IEC 6112-1; IEC 60945; ITU-R M1371-5

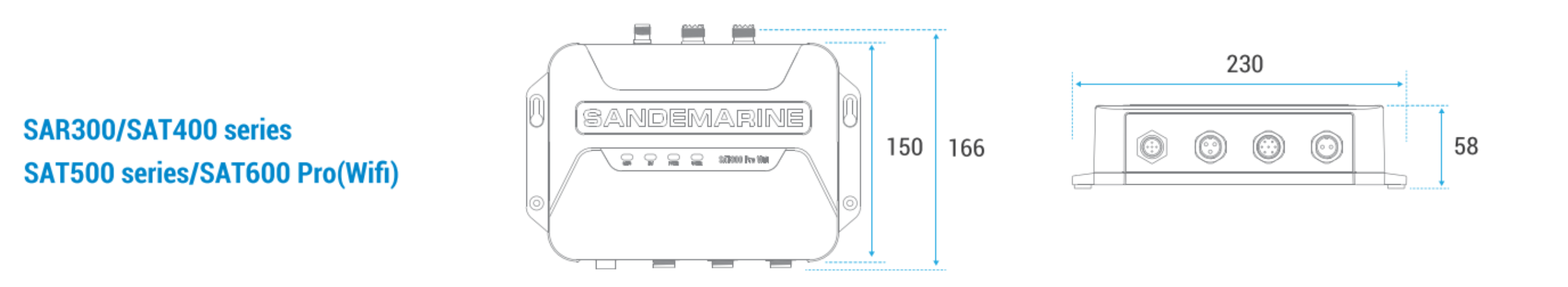

Size（mm）SAR300尺寸图


What‘s in the box


01   SAR200 ClassB AIS Transponder ×1

02   Power Cable ×1

03   Data Cable ×1

04   USB Cable ×1

05   Accessories


download SAT200/SAT200 Pro Manual_En.pdf

download AIS Configurator-V1.0.exe
