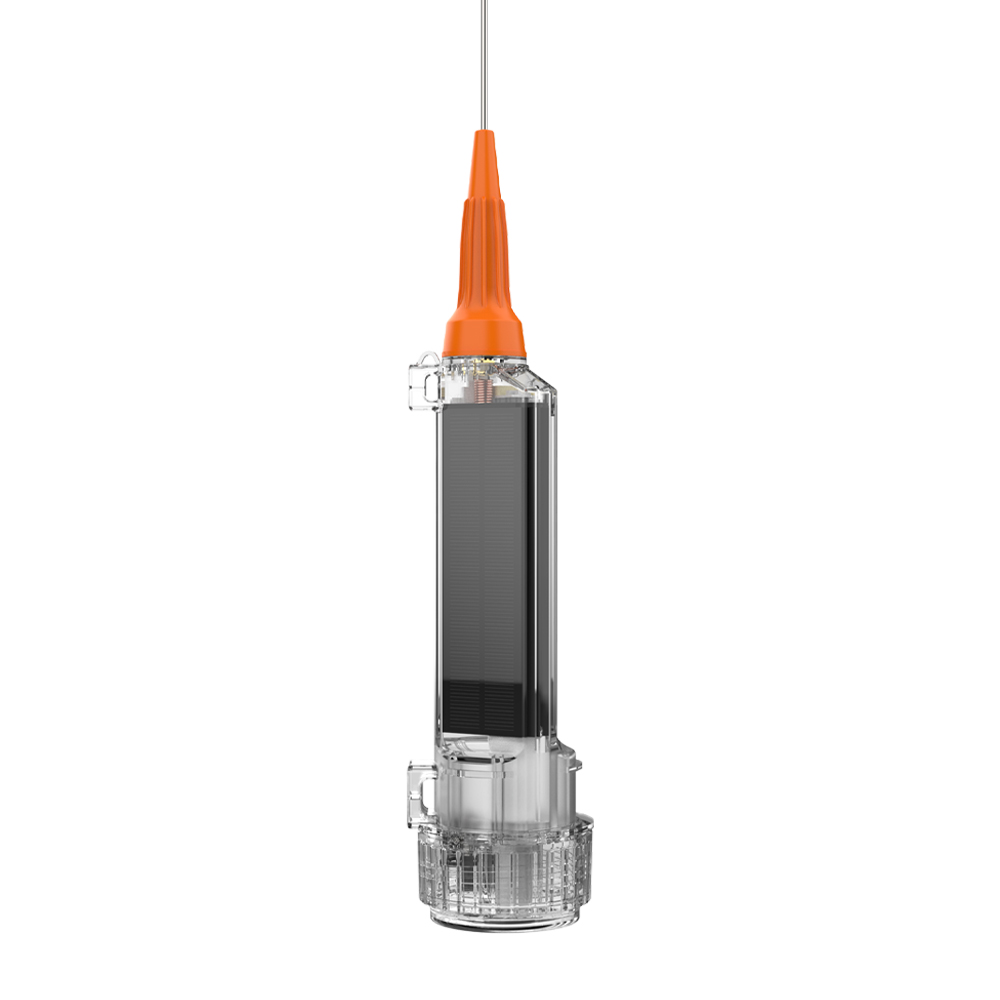

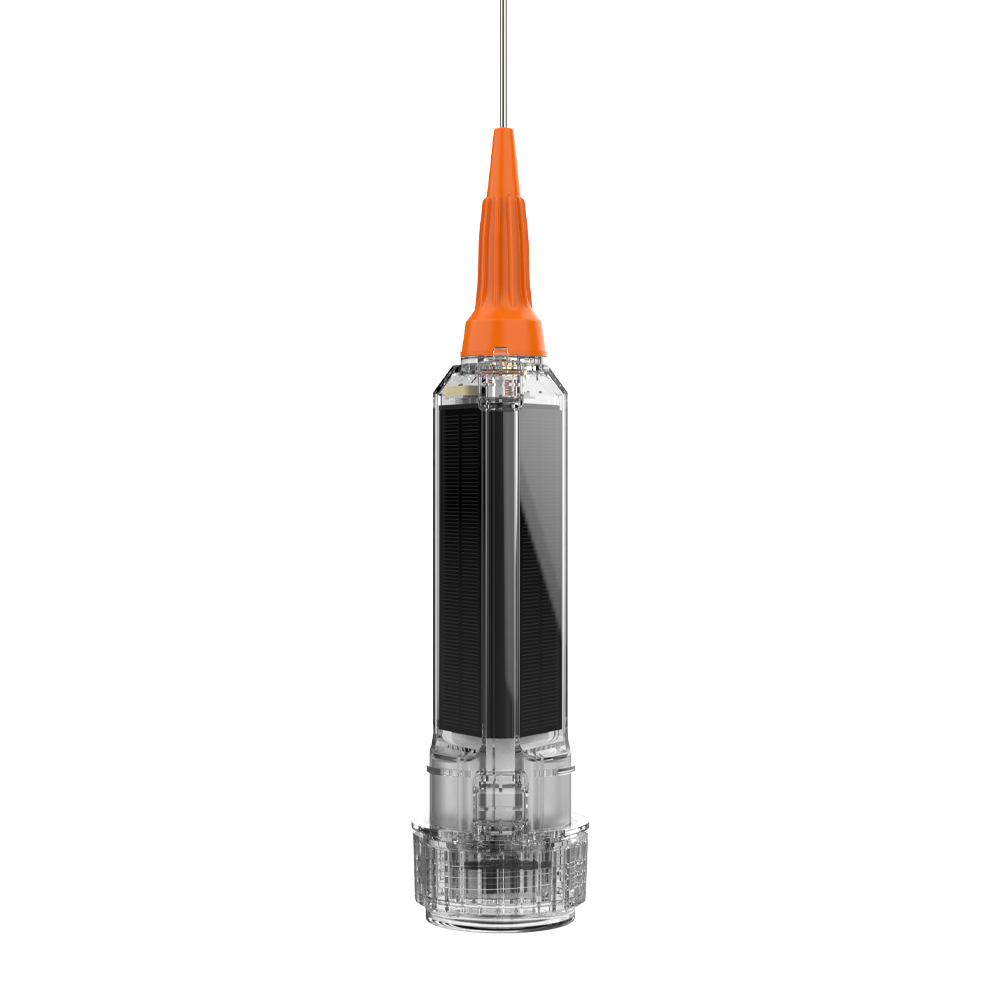

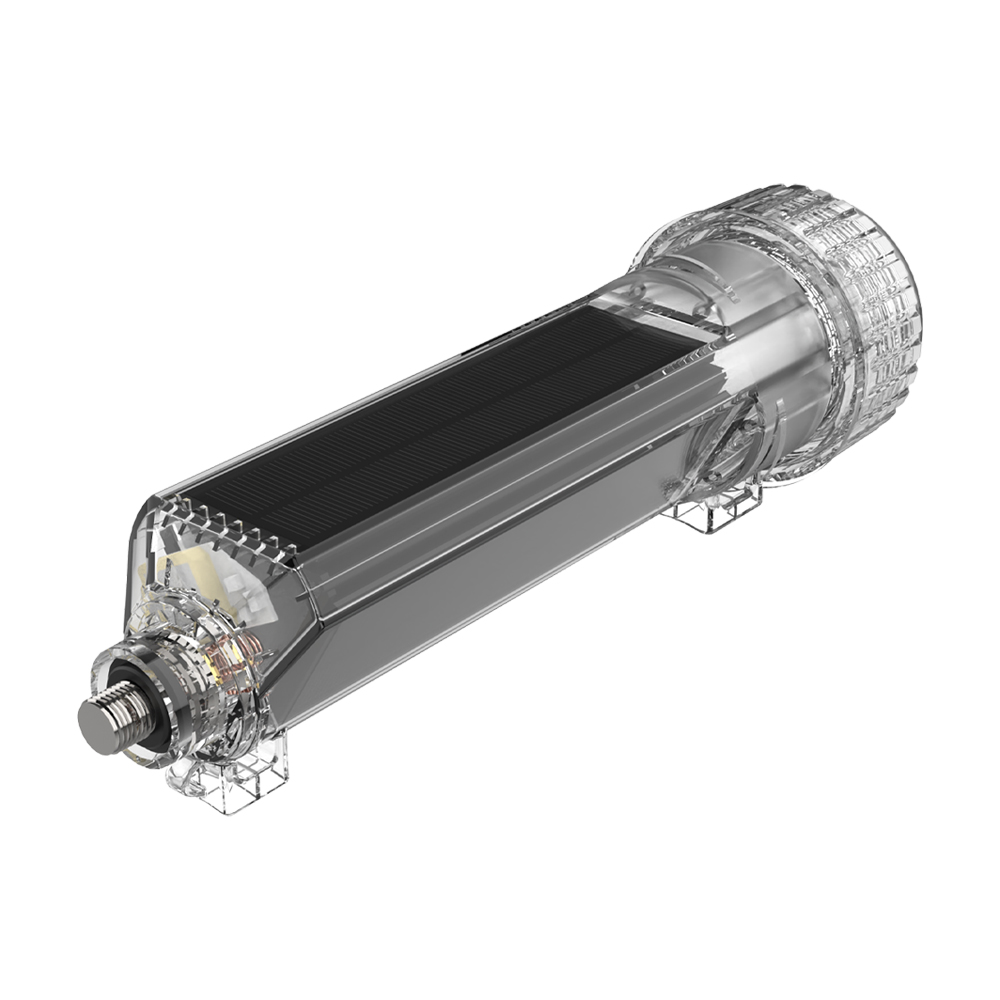

B750/B750 Ultra Solar AIS Buoy

AIS Fishing Buoy is usually fixed on th fishing net, with GPS positioning function. AIS receiver on the ship can receive the position information sent by AIS Fishing Buoy, which can help the ship identify the exact position of fishing net, shorten the search time , reduce the production cost, and prevent the net drifting loss, towing, hanging.

External antenna
Distance：14-16nm(B750), 18-20nm(B750 Ultra)
Time：Built-in solar panels，unlimited endurance
Encryption function（Optional）

SKU:
Availability:



Inquire

Description
Specifications
What's in the box
Download

网位仪列表中文英文_画板 1

Quick links

Home
Products
News
Supports
About Us
Contact Us

Products

Autopilots
AIS Buoy
Radiotelephone
Compass
AIS

Product Brochure

Contact

Address: West Area,Xiaoliu Industrial Park, No.21 Liuzhou North Road,Pukou District,Nanjing,China
Phones: +86-025-83358002
Email: bzhang@sandemarine.com

lily@sandemarine.com

TX frequency	161.975MHz & 162.025MHz
Band width	25KHz
Stability	±1ppm
Voltage	6.2～8.2VDC
Current consumption	≤0.3mA (Stanby) , ≤25mA (GPS searching) , ≤2A (Tx)
GPS start time	≤60s (Cold start), ≤5s (Hot start)
GPS positioning accuracy	≤10m

Temperature	-25℃~60℃
Waterproof	IP68

TX Power	10W
Adjust Mode	GMSK BT=0.4
Adjust Index	0.5
Launch Stray	<-36dBm

Antenna	Internal antenna
Distance	B750: 14~16nm
Distance	B750 Ultra: 18-20nm
Tx interval time	30s / 1min / 2min / 3min / 5min (Programmable)
Battery	Standard (2600mAh)
Working time (Tx interval time:2min)	Unlimited endurance(Sunffcient sunlight)
Encrypted version	Using with AIS buoy receiver WR100

TX frequency	161.975MHz & 162.025MHz
Band width	25KHz
Stability	±1ppm
Voltage	6.2～8.2VDC
Current consumption	≤0.3mA (Stanby) , ≤25mA (GPS searching) , ≤2A (Tx)
GPS start time	≤60s (Cold start), ≤5s (Hot start)
GPS positioning accuracy	≤10m
