AP200 Autopilot Display Unit

SKU:
Availability:
Inquire

AP200详情页封面图层 1图层 2英文自动舵配置页面

Display unit

Screen 7  inch
Displayable area 153.8×85.6mm
Brightness 400 ints (Max)
Pixel 800×480

Environment

Temperature -15℃~55℃
Waterproof IP65

Power

Power supply 9-36V DC

Installation

Installation Desktop installation, Hanging installation, Embedded installation

Port

NMEA 0183

Data port(RS422): Positioning data, heading, rudder angle, external navigation data input

                                 Positioning data, heading, rudder angle output

Compass port(RS422): Positioning data, heading input

Function

Steering mode STBY,  AUTO,  FU,  No-drift (ND),  NAV
Navigation mode Waypoint NAV, External navigation

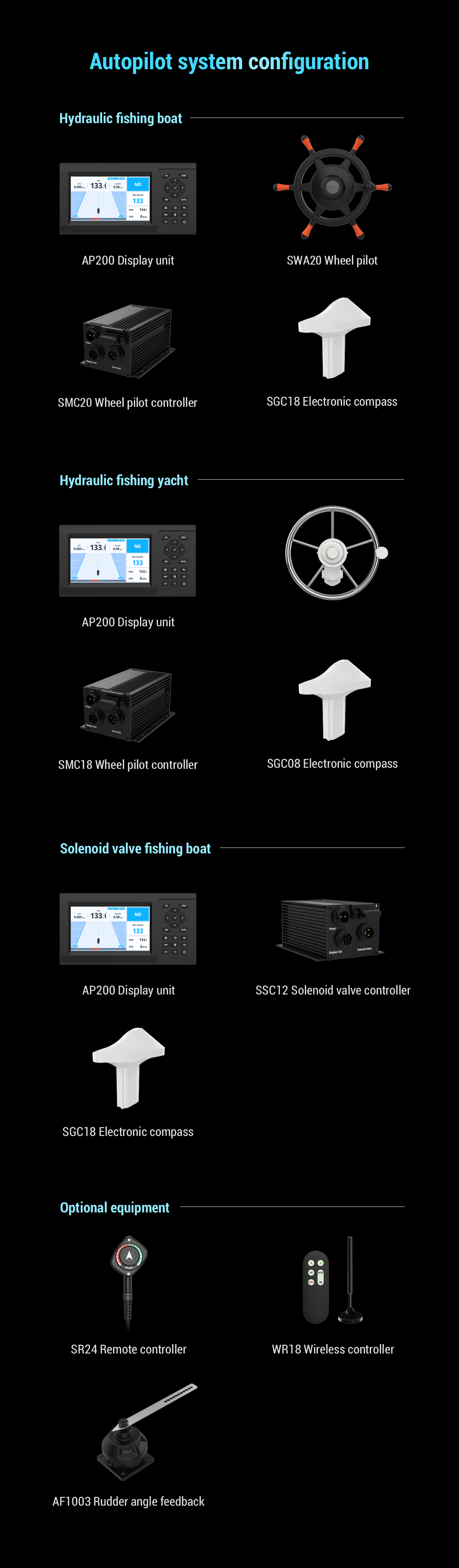

Vessel type Hydraulic-driven boat, Chain-driven boat, Solenoid valve boat, Hydraulic-driven yacht

Size

微信截图_20240821093724



What‘s in the box


01   AP200 Autopilot display unit ×1

02   Power cable ×1

03   Display unit bracket ×1

04   Bracket fixing knob ×2

05   Accessories



download AP200-Manual-En-V1.1.pdf

download AP200-Quick guide-En.pdf

download AP200-Mounting template-En.pdf
